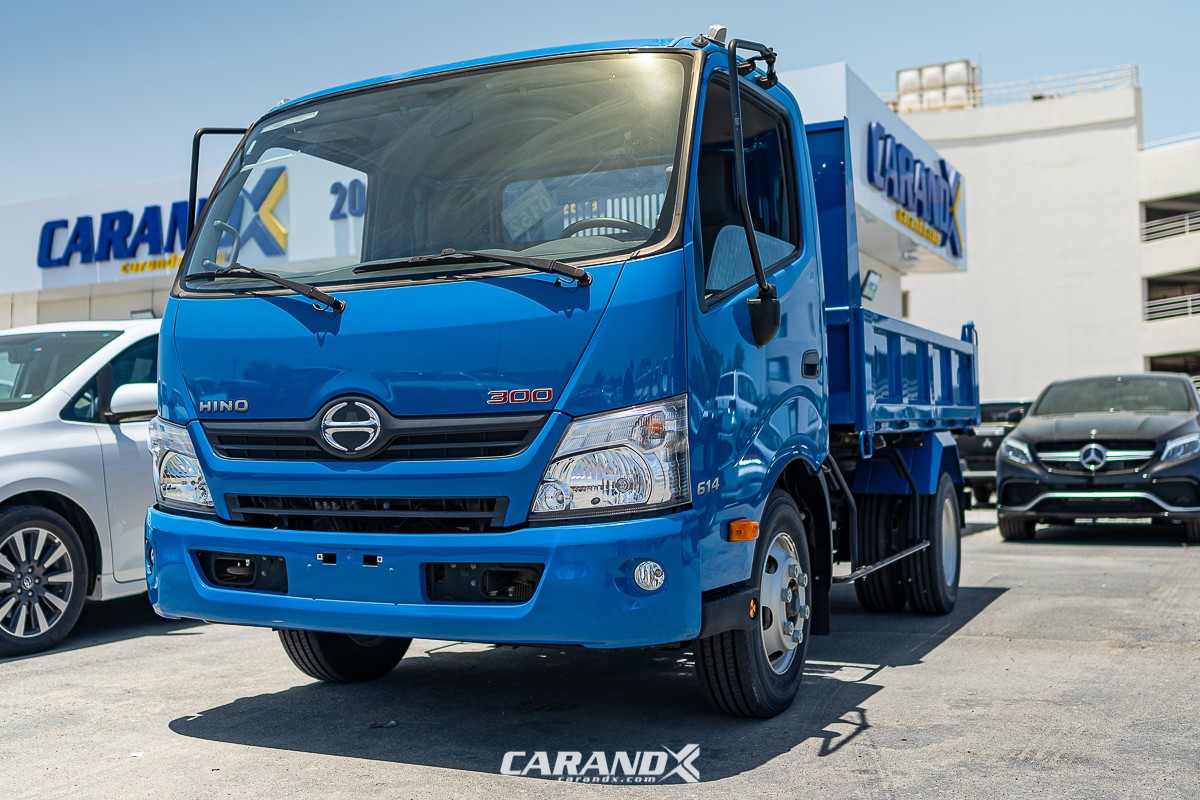

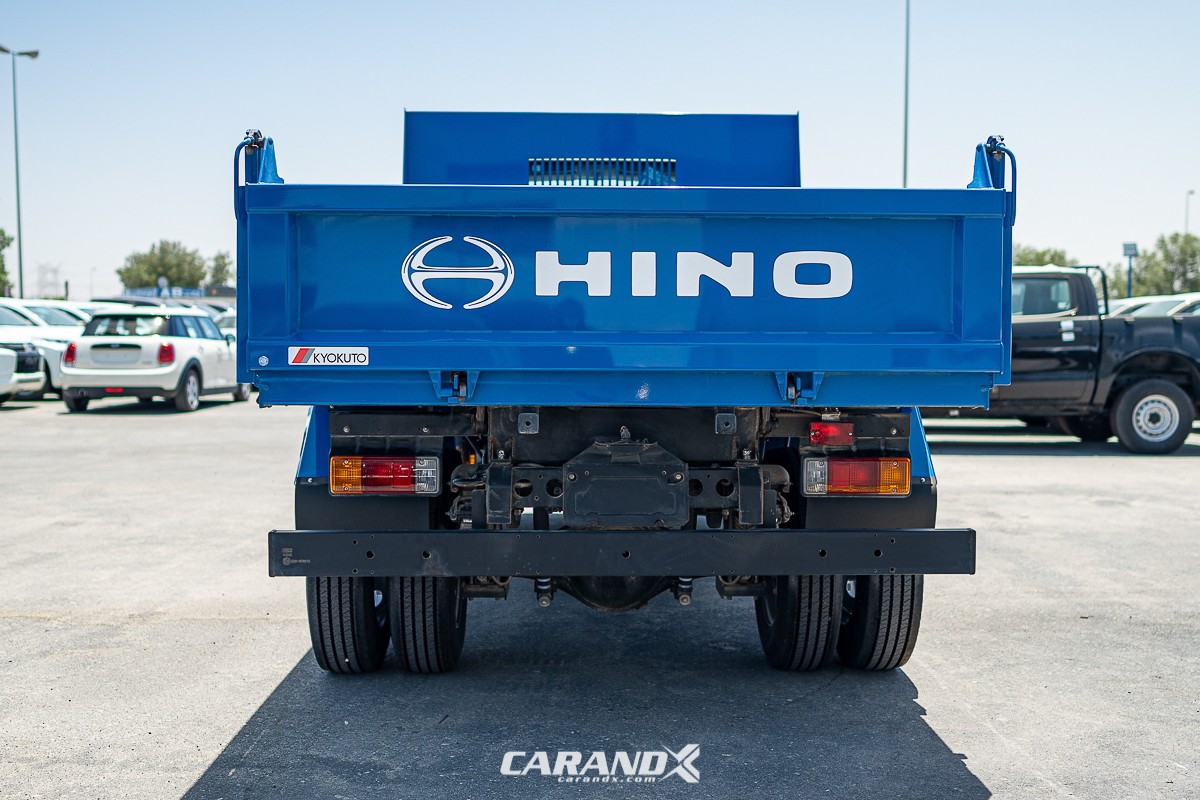

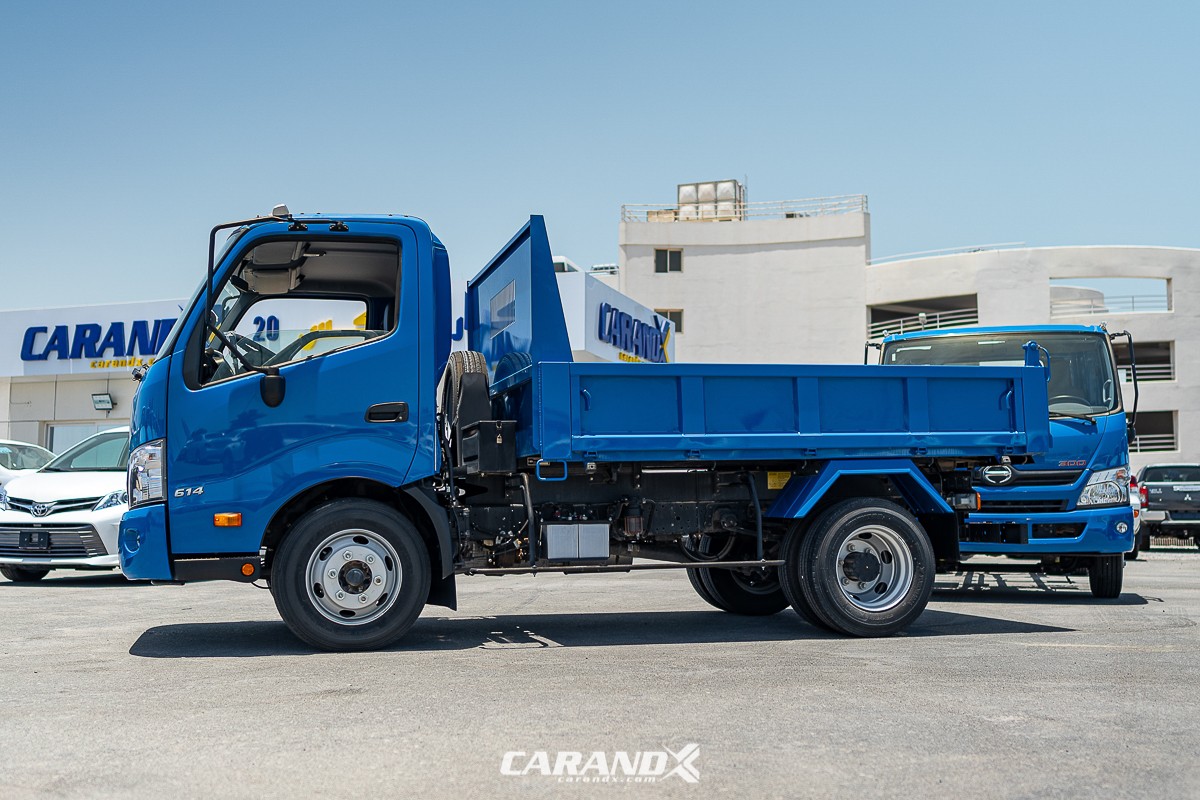

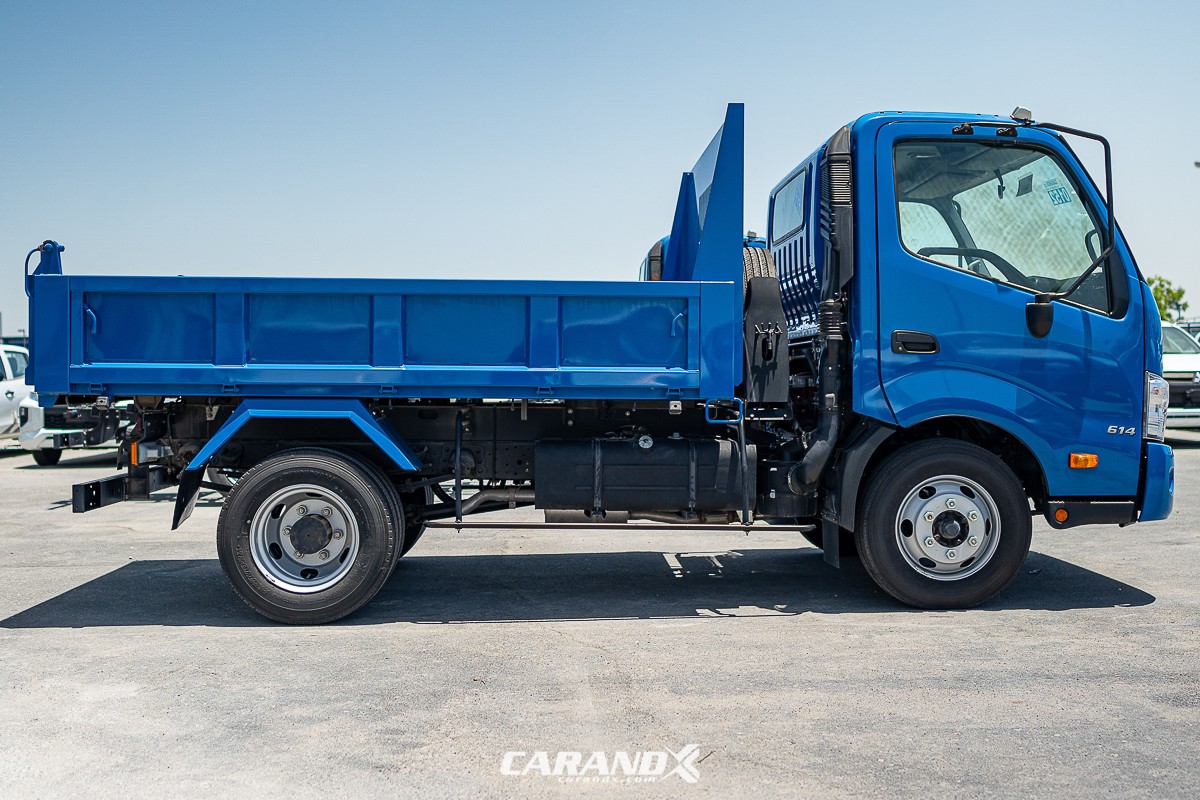

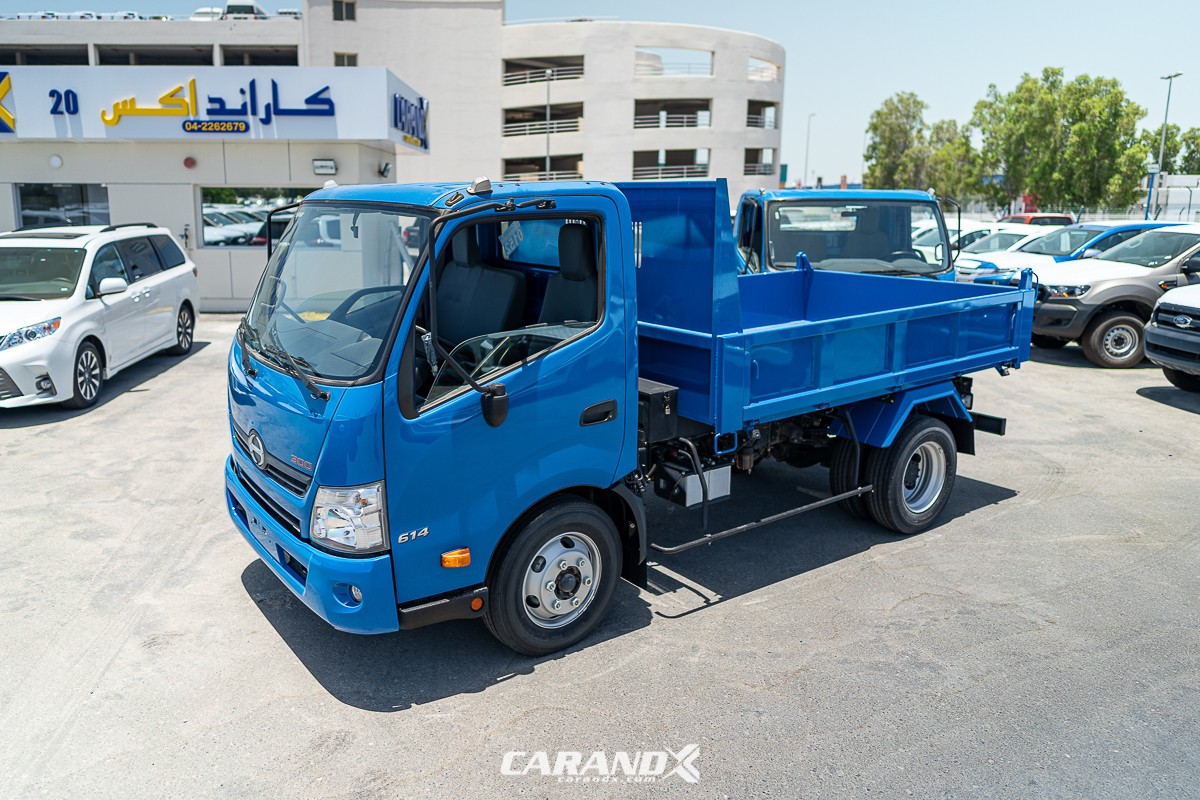

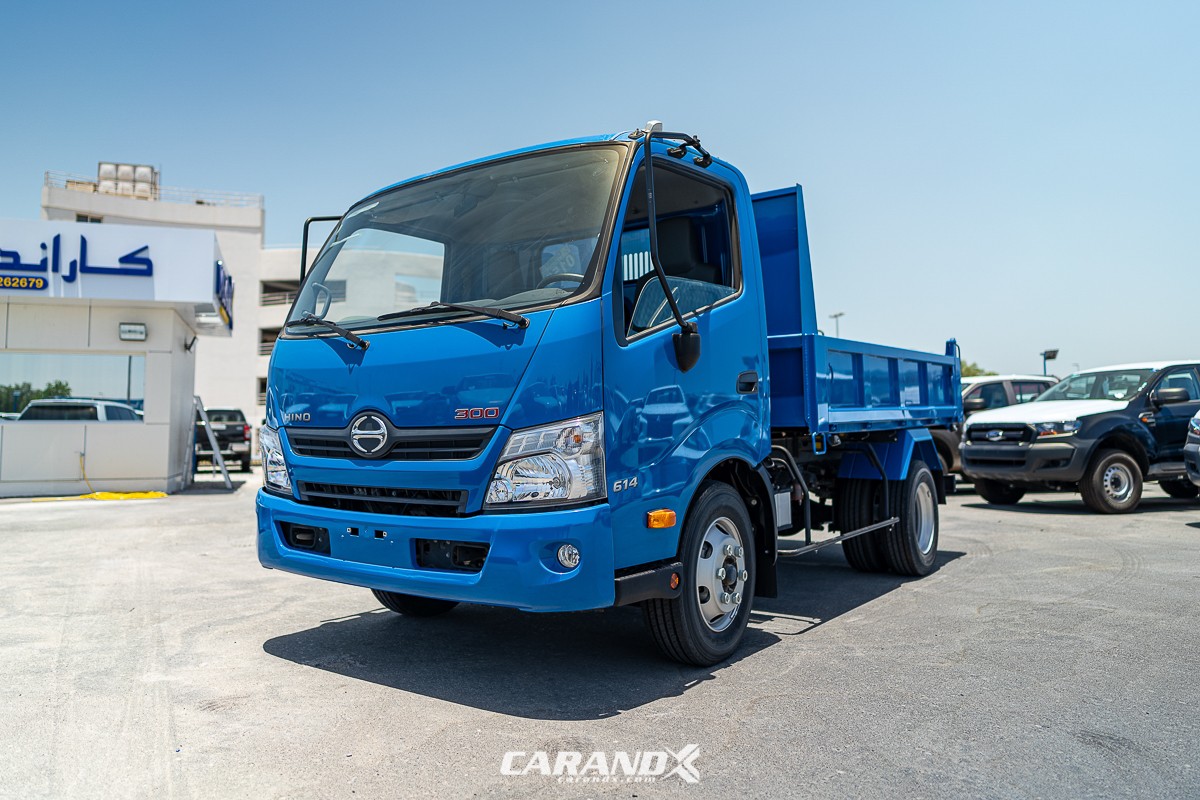

HINO Dumper 3 Ton

HINO Dumper 3 Ton

Carandx offers a wide selection of vehicle models available for export to China, Africa, the Middle East, South America and Southeast Asia.

HINO 614 are amongst our popular export vehicles.

You can view our prices by clicking “See Price” below.

  • Model Name: 614 Dumper
  • Engine: 3.0 Liter
  • Fuel Type: Diesel
  • Transmission: Manual
  • Body Type: Dumper
  • Axle: 2WD
  • Model Year: 2017
  • Model Code: HID3T17
  • Brand: HINO
  • Model: 614, Dumper
  • Vehicle Type: Commercial
SKU: HID3T17 Categories: , Tags: , , , , , ,

Specifications


Model Code  :  HID3T17
Model Year :  2017
Body Type  :  Dumper
Axle  :  2WD
Displacement  :  3.0L
Transmission :  Manual
Fuel Type :  Diesel

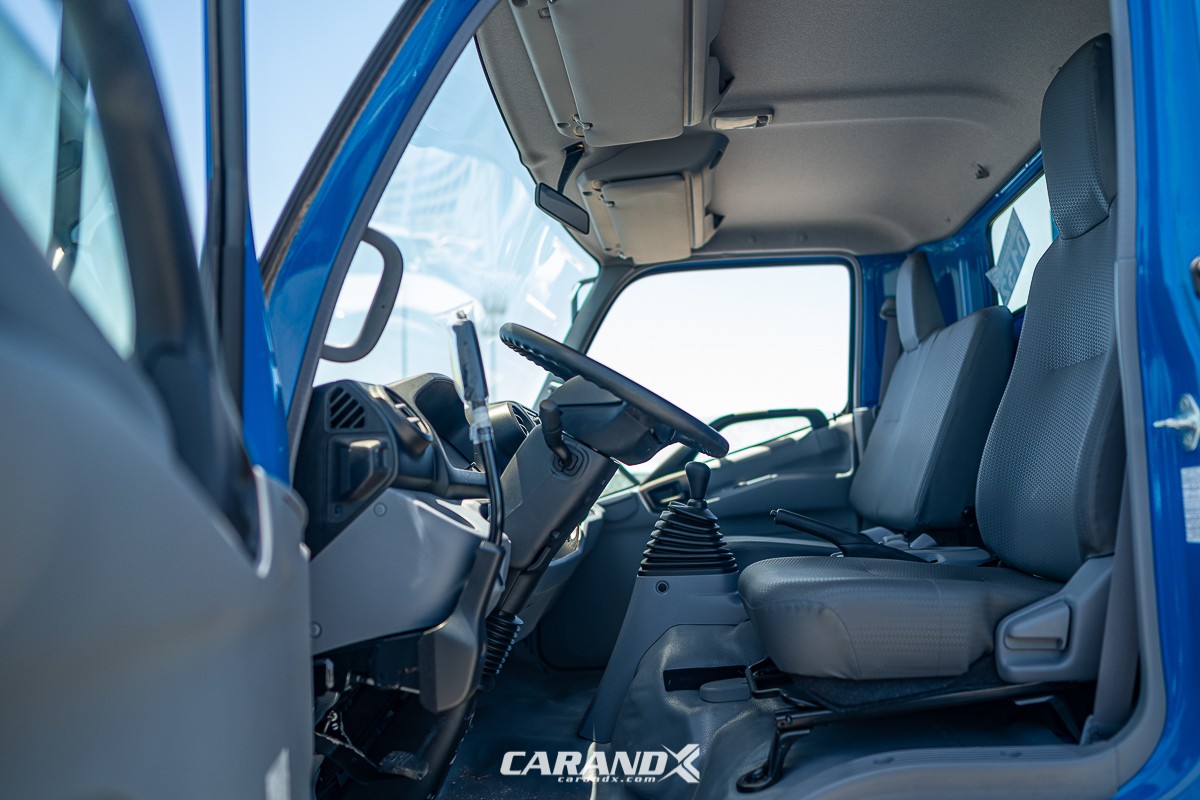

Door :  2 Doors

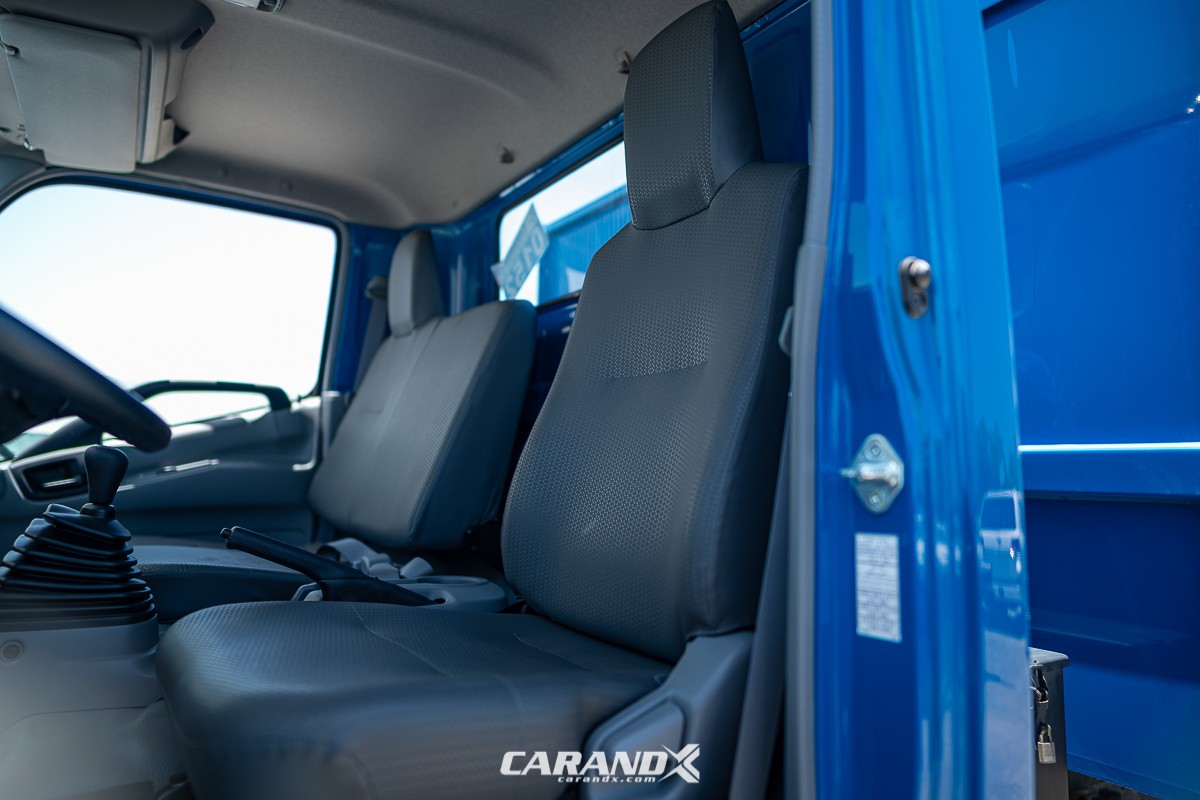

Seats :  3 Seater
Spare Wheel :  Behind Cabin

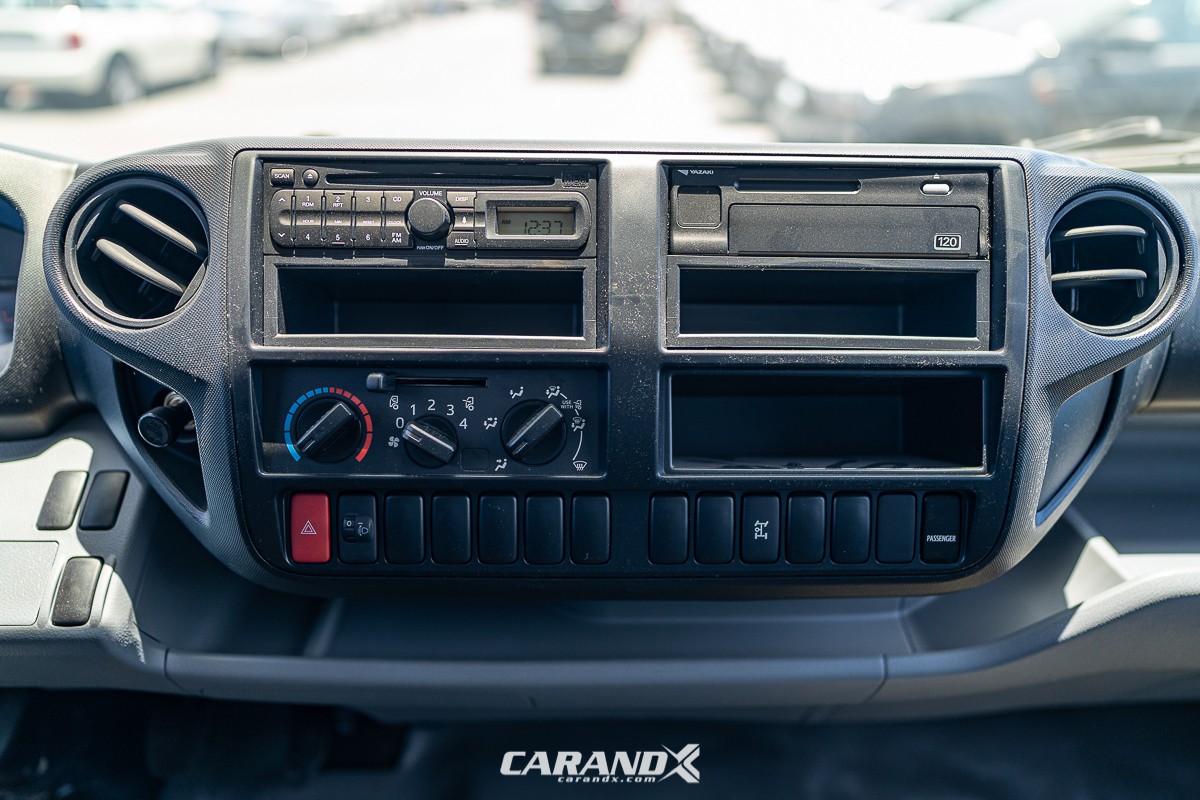

Temp Control :  Manual

Technical Features

  • Overall Length mm - 5110
  • Overall Width mm 2005
  • Overall Height mm 2240
  • Wheelbase mm 2810
  • Vehicle Mass kg 3115
  • Gross Vehicle MAss kg 5500
  • Mas payload  kg 2385
  • Max Speed km/hr 90
  • Diesel , Turbo Charge intercooled
  • 4 cyl in line
  • Direct Injection
  • Clutch - Dry single plate with damper Springs

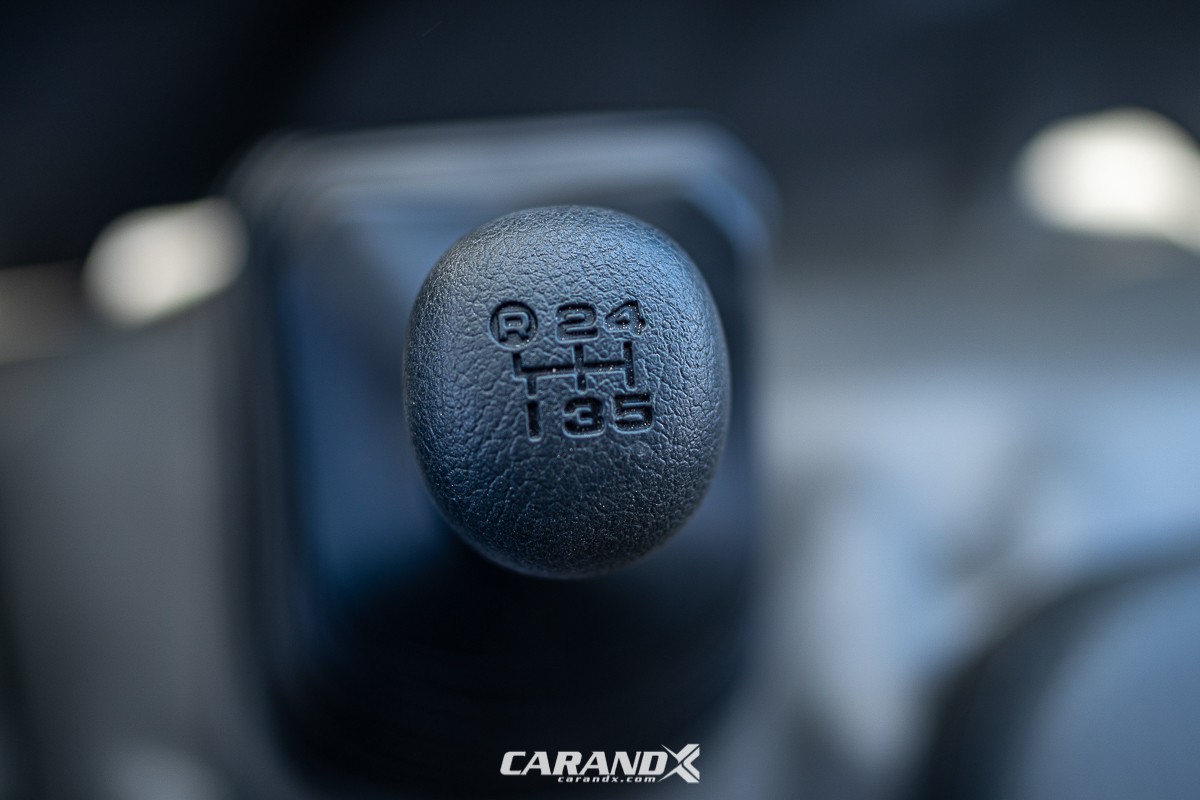

  • 5 Speed overdrive
  • Axle - Full floating single reduction
  • Brake Vacuum assist dual circuit / hydraulic system disc brakes
  • ABS

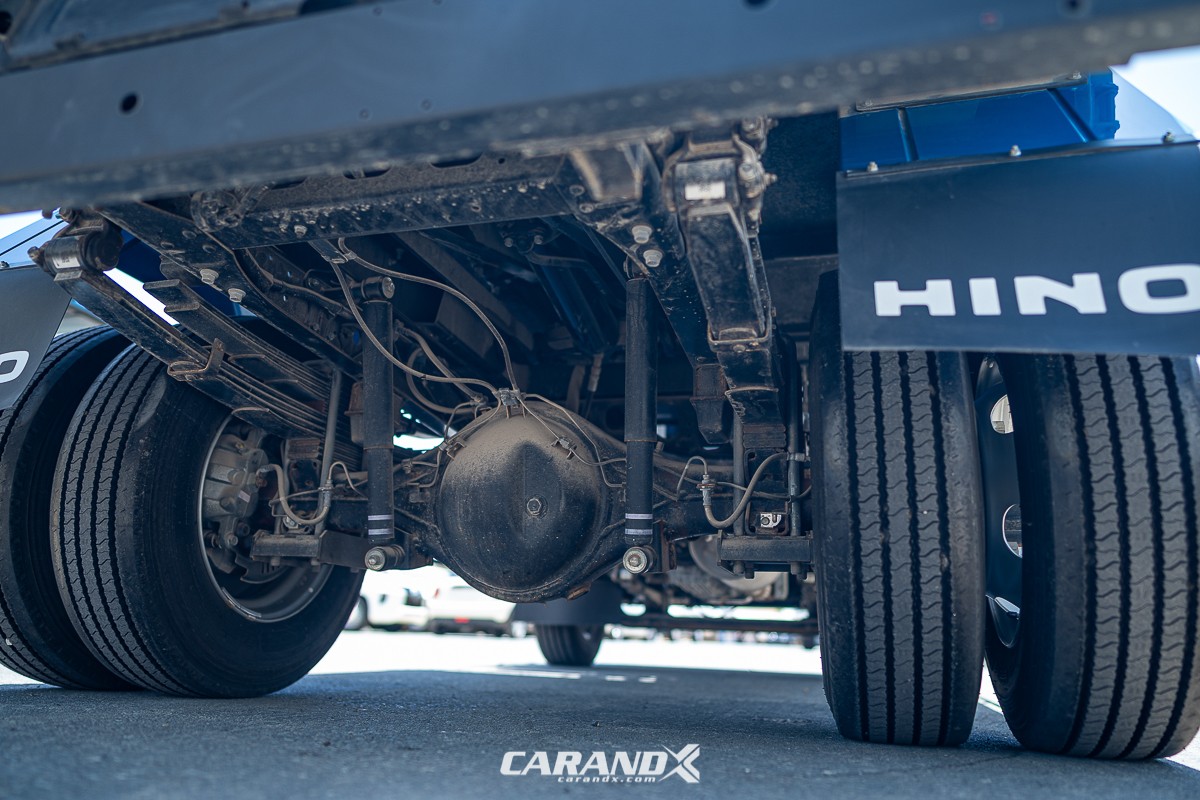

  • Suspension - Front semi elliptic leaf spring with shocks
  • Suspension - Rear - Semi elliptic main & auxiliary leaf spring with absorbers

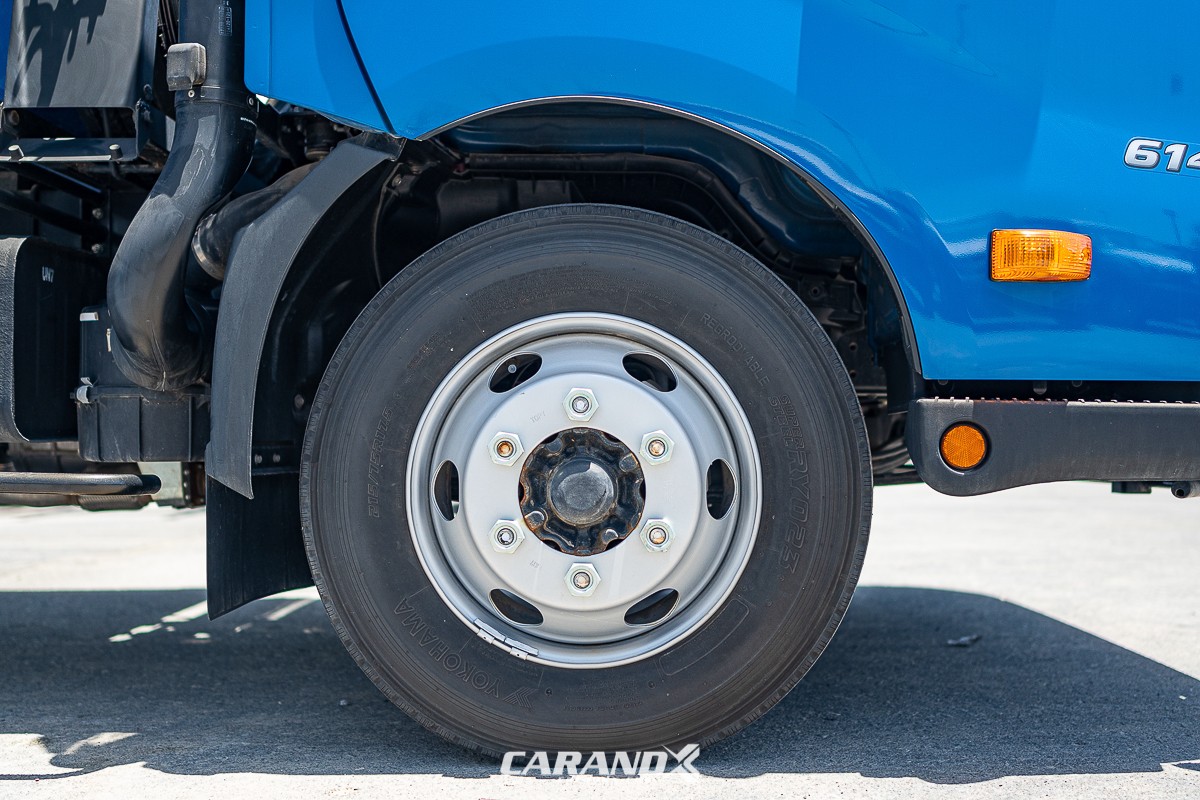

  • 215/75r17.5-126/124 with Emark
  • Fuel Tank . 100 L

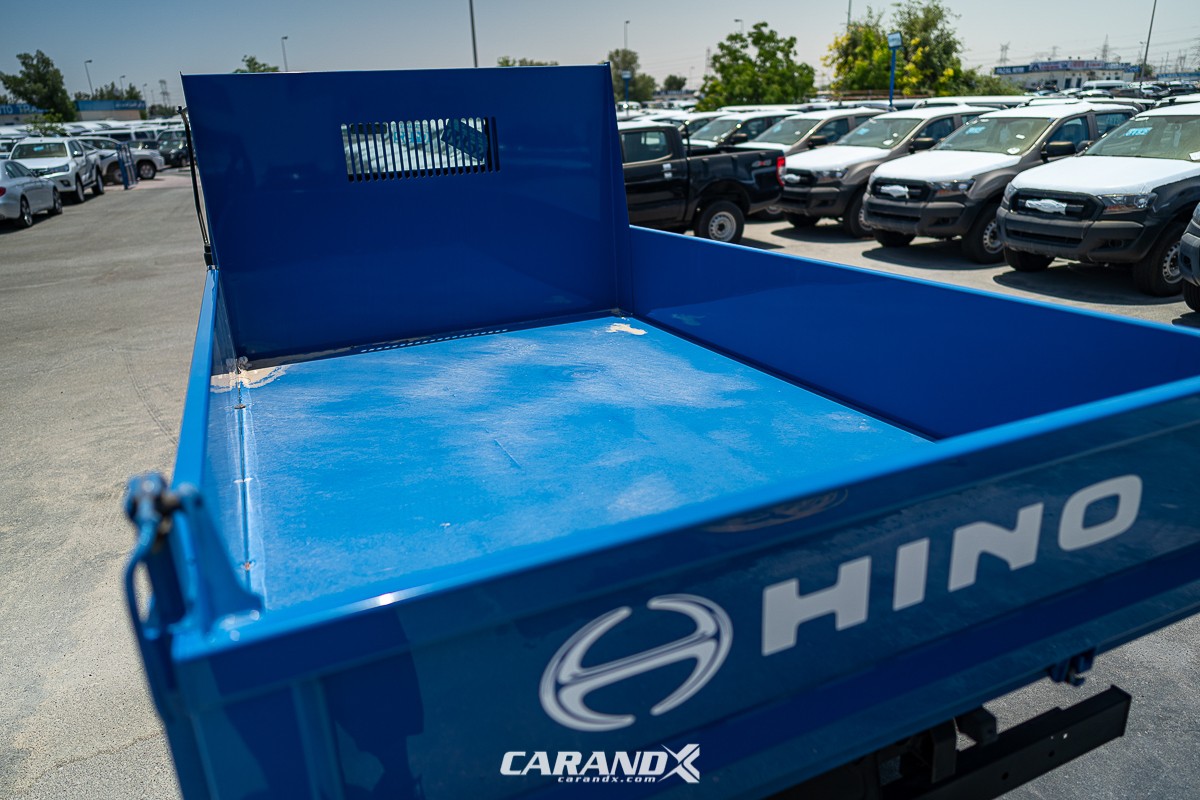

  • Dump Angle 60 Degrees
  • Lift time 20 seconds
  • Lowering time 20 seconds
  • Control - P.T.O Switch installed inside Cabin
  • Dumping Control Lever inside Cabin
